Accu-Drain

Electric Automatic Condensate Drains


A fully automatic, zero loss drain that only runs when it’s needed and saves on utility expenses. Translucent reservoir for visual assurance of operation.

Features

  • Zero Air Loss
  • Non clogging, straight-through flow Posi Valve guillotine style valve
  • Vertical compact design
  • Translucent reservoir
  • Indicator lights
  • Multiple sizes

Benefits

  • Energy efficient
  • Passes rust and scale that would foul other solenoid valves – no strainers to clean
  • Can be installed in a tight space
  • Easy-to-see condensate level “Quick check”
  • Easy to see status of drain
  • Sized for your needs

How it Removes Condensate From Compressed Air Systems

Condensate enters the drain through one of two inlet connections. As condensate is collected and the translucent reservoir fills, a stainless steel level switch rises. When the condensate reaches a design level, the level switch sends a signal to the straight flow posi valve, which in turn opens a full-port drain.

When installed, a light indicates power is being supplied to the drain. A second light indicates when the valve has been actuated by the float switch. An override switch is provided for manual operation of the drain.

Specifications

ACD2ACD3ACD5
Inlets: 1/2″ NPTInlets: (2) 1/2″ NPTInlets: 3/4″ & 1/2″ NPT
Outlet: 1/4″ NPTOutlet: 1/4″ NPTOutlet: 1/4″ NPT
Compressor Capacity: 500 CFMCompressor Capacity: 1000 CFMCompressor Capacity: 2000 CFM
Dryer Capacity: 1000 CFMDryer Capacity: 2000 CFMDryer Capacity: 4000 CFM
Filter Capacity: 3000 CFMFilter Capacity: 4000 CFMFilter Capacity: 12,000 CFM
Pressure: 0 – 200 PSIPressure: 0 – 200 PSIPressure: 0 – 200 PSI
Operating Temperature: 32° – 180° FOperating Temperature: 35° – 180° FOperating Temperature: 35° – 180° F
Weight: 2.6 lbs.Weight: 5 lbs.Weight: 10 lbs.
Discharge: 1.5 ounces per cycleDischarge: 8 ounces per cycleDischarge: 21 ounces per cycle
Voltage: 115 – includes 6′ power cordVoltage: 115 – includes 6′ power cordVoltage: 115 – includes 6′ power cord

Materials

Reservoir Aluminum & Composite
Control Stem Teflon Coated
FloatStainless Steel
SeatStainless Steel
SealViton®
*Consult factory for Optional Remote Alarm Contacts and other options

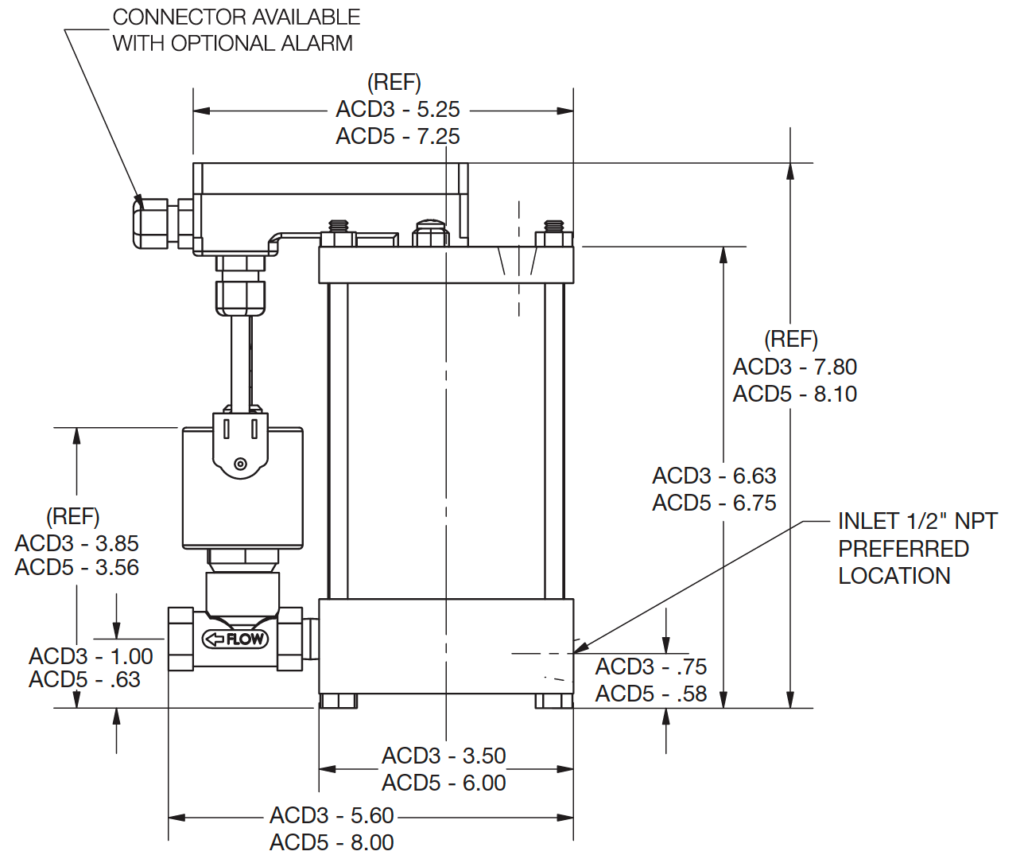

Dimensions

Ordering Information

Stock No.Description
ACD2Accu-Drain ACD2
ACD3Accu-Drain ACD3
ACD5Accu-Drain ACD5
