dDVT720 Series

Electric Air Compressor Condensate Drain with Digital Timer

Removes condensate from air compressors and maximizes reliability. This drain is equipped with a digital timer interface for programming a wide range of exact open and close valve settings.

Features

Compact size, light weight
Extended Off cycle times to 99 hours.
Test button
Adjustable valve open times and close times
LED display with backlight
Available with optional valve sizes
Available with optional valve guard/strainer

Benefits

Installs at drain points: filters, separators, dryers and air receivers
Conserves compressed air
Quick check of drain operation
Simple programming steps that is tamper-proof.
Easy to read even in dark environments
Can be used on wide range of applications
Helps to prevent clogging and extend service life.

How it Removes Condensate from Compressed Air Systems

The new dDVT720 drain incorporates a digital timer designed with an easy to read LED display with backlight, ON and OFF buttons for accurate programming, indicator lights to show valve open and valved closed program status, and a compact durable housing.

The digital timer included with the new dDVT720 drain is equipped with a wide range of adjustable open and closed drain valve settings that enable programming of the timer from 0.5 to 99 seconds for valve open and 0.5 minute to 99 hours for valve closed times.

The new dDVT720 drain contains the same high quality diaphragm style valve as the original DVT720 but with digital interface for programming exact open and close valve settings.

Specifications

Inlet/Outlet (NPT)	1/4″ , 3/8″ , 1/2″
Valve ON Times	0.5 – 99 seconds
Valve OFF Times	0.5 minutes to 99 Hours
Pressure	250 PSI – 300 PSI
Power	110 V; 3 prong grounded plug with 6′ cord.
Weight	1 lb.

P65 Protection Class

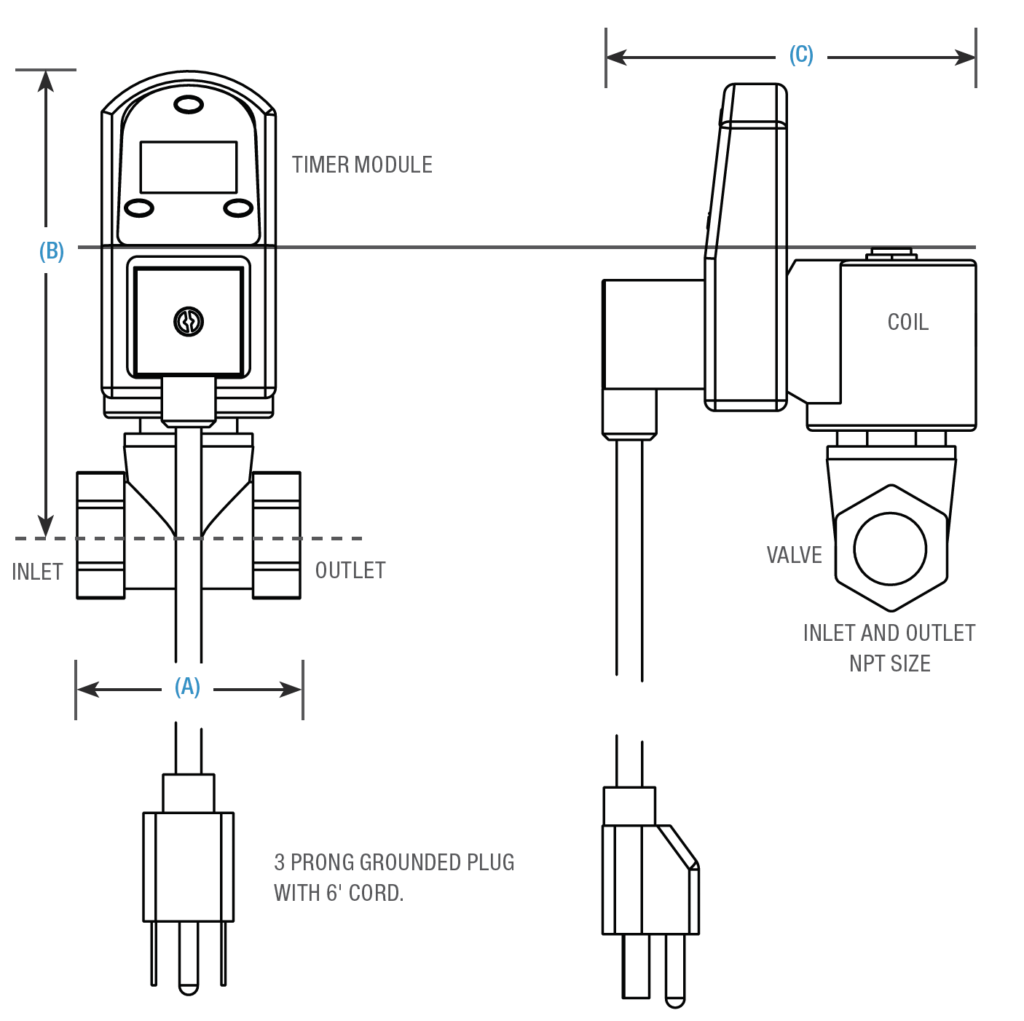

Dimensions

Stock No.	A	B	C
dDV720-66	1.4″	3.8″	3.4″
dDV720-22	2.2″	4.9″	3.9″
dDV720-23	2.2″	4.9″	3.9″
dDV720-24	2.2″	4.9″	3.9″

Ordering Information

Stock No.	Description
dDVT720	Timer Module Only
dDV720-66	Timer with 1/4″ Valve
dDV720-22	Timer with 1/4″ Valve
dDV720-23	Timer with 3/8″ Valve
dDV720-24	Timer with 1/2″ Valve
YS61214	Valve Guard/Strainer for 1/4″ Valve
YS61238	Valve Guard/Strainer for 3/8″ Valve
YS61212	Valve Guard/Strainer for 1/2″ Valve

Support and Downloads

dDV720 Series Installation Operating Manual

dDV720 Brochure
