EZ-Drain Demand Drain

EZ-Drain

Internal Pneumatic Operated Condensate Drain


A fully automatic, easy to install design, zero loss drain that requires no external power utility. Translucent reservoir for visual assurance of operation.

Features

  • Easy to install
  • Fully Pneumatic
  • Vertical compact design
  • Non clogging
  • Translucent reservoir
  • Isolated trigger assembly
  • Full port ball valve
  • Versatile for many applications

Benefits

  • Easy to install
  • No external power utility
  • Can be installed in a tight space
  • No strainers to clean
  • Easy-to-see condensate level “Quick check”
  • Ensures a positive action, preventing air loss
  • Provides rapid discharge and avoids pluggage by contaminants
  • Can be used for aftercoolers, receivers, dryers, filters, or drip legs

How it Removes Condensate From Compressed Air Systems

Condensate enters the drain through one of two inlet connections. A stainless steel float is attached to a lever arm. Attached to the other side of the lever arm is a filter protected poppet assembly. As condensate is collected and the translucent reservoir fills, a stainless steel float mechanism rises. When the condensate reaches a design level, the float mechanism actuates a poppet assembly. The poppet assembly directs control air to the valve actuator, which in turn opens a full-port drain valve.

Condensation will then exit the unit. As the float drops and the poppet seal closes the control air line and the valve actuator closes the ball valve. The drain is now ready to accept condensate again.

Specifications

Inlet(2) 1/2″ NPT
Outlet3/8″ NPT
PowerNo External Power Required
Pressure0 to 200 PSI
Operating Temperature33° to 180° F.
Weight8 lbs.
Discharge12 ounces per cycle

Materials

Reservoir Composite
HeadsAluminum
ValveBronze w/S.S. Ball and Stem
FloatStainless Steel
SealViton®
*Consult factory for additional options

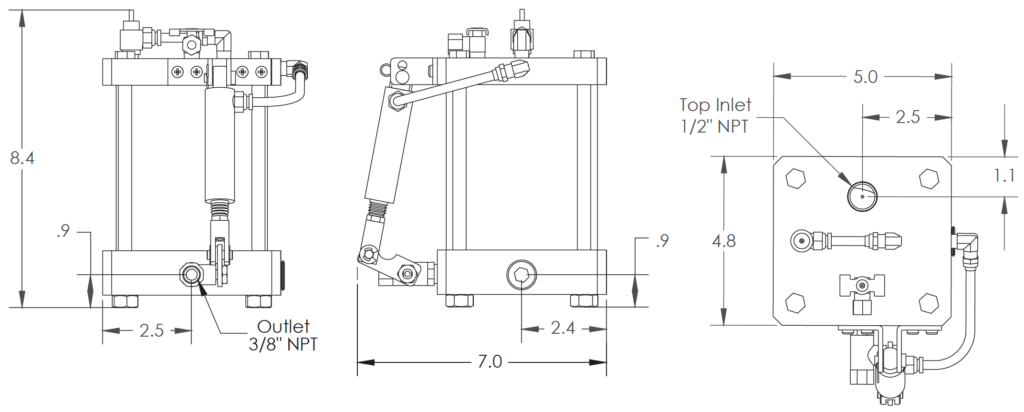

Dimensions

Ordering Information

Stock No.Description
EZ EZ-Drain

Support and Downloads

EZ-Drain Installation Operating Manual

EZ-Drain Drawing
