Posi-Drain

Premium Electric Condensate Drain for compressed air systems with Analog Controls

The chopping, guillotine action of the Posi Valve creates a non clogging, straight-through flow. Removes condensate, (oil and water) from compressed air systems.

Features

Straight-through flow pattern
Robust seat and seal design
Dual-adjustable solid-state external timer
Pilot lights for Power (red) and Valve Open (green)
NEMA 4X enclosure
Multi-valve capabilities
Self-cleaning action
Mounting tabs for wall or panel mount
Versatile for many applications

Benefits

Prevents clogging
Provides extended service on the most demanding applications
Easy adjustment of both drain frequency and length of drain cycle
Indicate drain status at a glance
Rugged and non-corrosive
PD7000 operates one to four valves at once
Makes valve dependable in adverse conditions
Flexible positioning
Can be used for filters, air receivers, air dryers, separators and aftercoolers

How it Removes Condensate from Compressed Air Systems

The Posi-Drain is a premium timer drain based on the remarkable, chopping, guillotine action of the Posi Valve. This robust valve creates a non clogging, straight-through flow.

The timer initiates a drain cycle by energizing a magnet coil that slides up the seal assembly and creates a straight through flow path for condensate. When the timer times-out, the coil is de-energized and the seal assembly is spring-returned to the closed position. The opening and closing action also serves to wipe contaminants from the sealing surfaces to ensure a positive seal and no air.

Specifications

Inlet/Outlet	1/4″ NPT
Drain Cycle Frequency	5 secs. – 50 mins.
Drain Cycle Time	1 – 15 secs.
Pressure	200 PSI
Power Cord	8 ft. with NEMA 5-15 3-blade, 125 VAC grounded plug.
Voltage	110V/1PH/60HZ. Other voltages available. Please contact factory.
NEMA 4X Enclosure	6″ x 3″ x 3″
Material	Body-Bronze, Seat-Stainless Steel, Seal-High Performance Thermoplastic

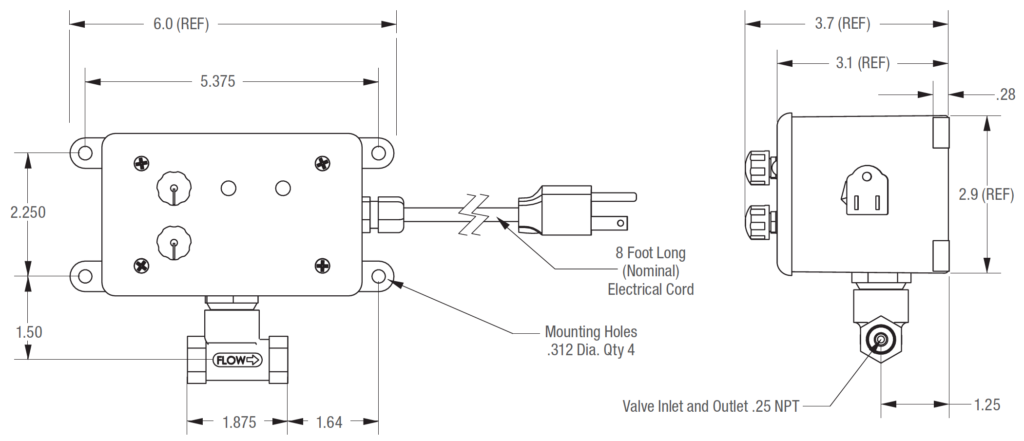

Dimensions

Ordering Information

Stock No.	Description	Weight
PD7000	Posi Timer Controller Only	1 lb.
PD7020	Posi-Drain Single Valve with Timer	2 lbs.
PV1	Posi Valve Only	1 lb.
