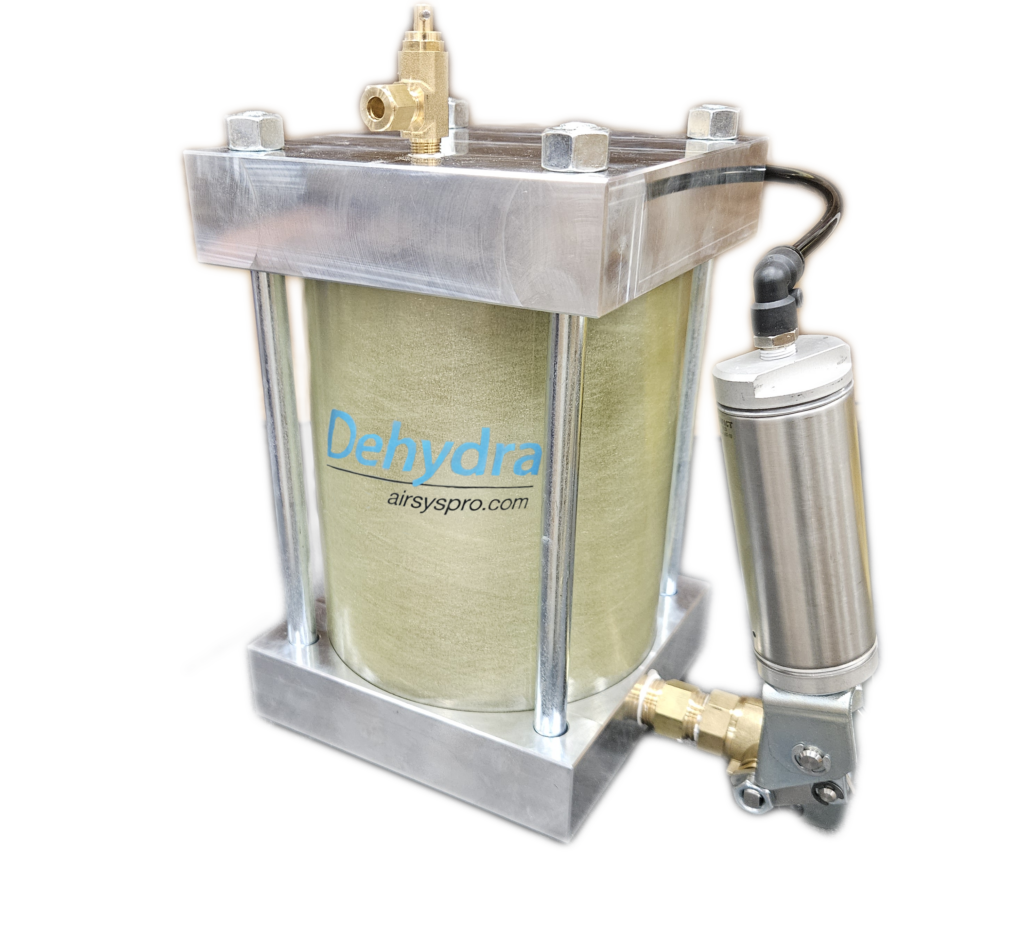

Dehydra

External Pneumatic Condensate / Moisture Drain for Compressed Air Systems

A fully automatic zero loss drain that protects compressed air systems and requires no electricity. Translucent reservoir for visual assurance of operation and condition of the unit.

Features

Turn-key design
Fully pneumatic
Vertical Design
Non clogging
Translucent reservoir
Isolated trigger assembly
Full port ball valve
Versatile for many applications

Benefits

Easy to install
No electricity required
Takes up less floor space
No strainers to clean
Easy-to-see condensate level “Quick check”
Keeps debris out of trigger mechanism
Provides rapid discharge and reduces clogging
Can be used for aftercoolers, receivers, dryers, or filters

How it Removes Condensate From Compressed Air Systems

Condensate enters the drain through one of two inlet connections. A Stainless-Steel float is tethered to a lever arm. As condensate is collected and fills the Translucent reservoir, the float rises. When the condensate reaches a designated level, the float lifts the trigger assembly and a drain cycle is initiated. The trigger assembly opens and directs control air to the valve actuator, which in turn opens the ball valve.

Condensate will then exit the unit. As the condensate level drops, the trigger assembly closes and the valve actuator closes the ball valve. The drain is returned to a standby condition.

Specifications

Inlet	(2) 1/2″ NPT
Outlet	1/2″ NPT
Power	Clean, Dry Compressed Air 50 to 120 PSI
Pressure	0 to 450 PSI
Operating Temperature	33° to 150° F.
Weight	18 lbs.
Discharge	35 ounces per cycle

Materials

Reservoir	Composite
Valve	Bronze w/S.S. Ball and Stem
Float	Stainless Steel
Heads	Aluminum
Seal	Viton^®

*Consult factory for additional options

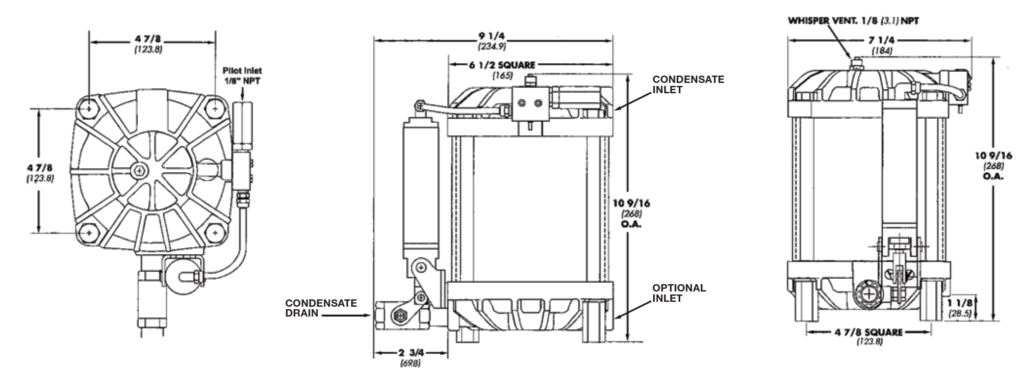

Dimensions

Ordering Information

Stock No.	Description
PN-94102	Dehydra, 450 PSI

Support and Downloads

Dehydra Installation Operating Manual

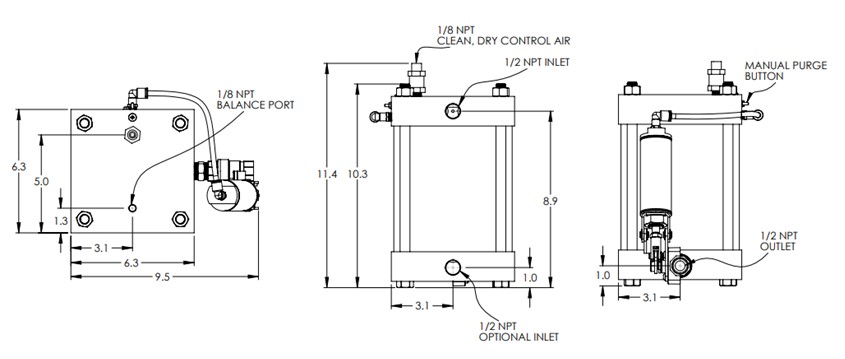

Dehydra Dimensional Drawing
