Equalizer

Equalizer

Oil/Water Separator Accessory


An accessory designed to collect and manage high volumes of condensate for multiple oil/water separators.

Features

  • Automatically equalizes flow to multiple units
  • Multiple inlet/outlet connections
  • Large storage reservoir

Benefits

  • Helps improve operation of oil/water separators
  • Supports system expansion
  • Balances up to 4 oil/water separators
  • Ideal for large capacity level drains
  • Handles in-rush from various drains

How it Works

Condensate enters the Equalizer through inlet ports on the diffuser. The Equalizer automatically slows down the flow of the condensate as it distributes to multiple oil water separators. A diffuser pad serves to contain the condensate and reduce misting. The depressurized condensate drains into the collection and storage vessel where any solids drop out and the condensate accumulates. The condensate is then distributed to the oil/water separator(s).

Specifications / Dimensions

ModelInletsOutlets*Working Capacity
PSEQ1 Up to Three (3) 1/2” NPT Three (3) 1/2″ NPT2.4 Gallons
PSEQ2 Up to Three (3) 1/2” NPTFour (4) 1/2″ NPT2.4 Gallons

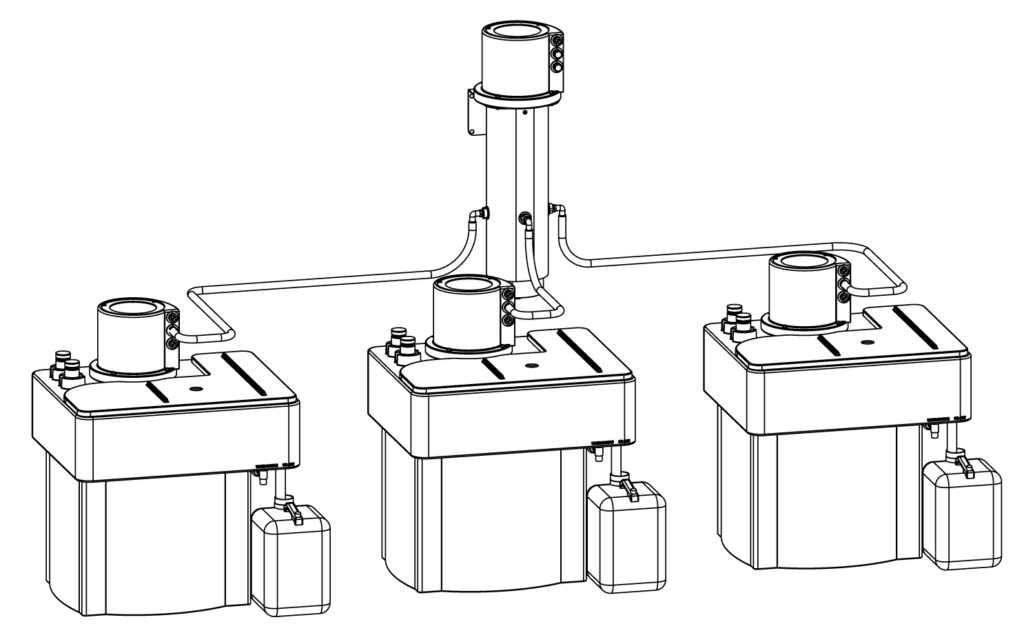

Diagram
