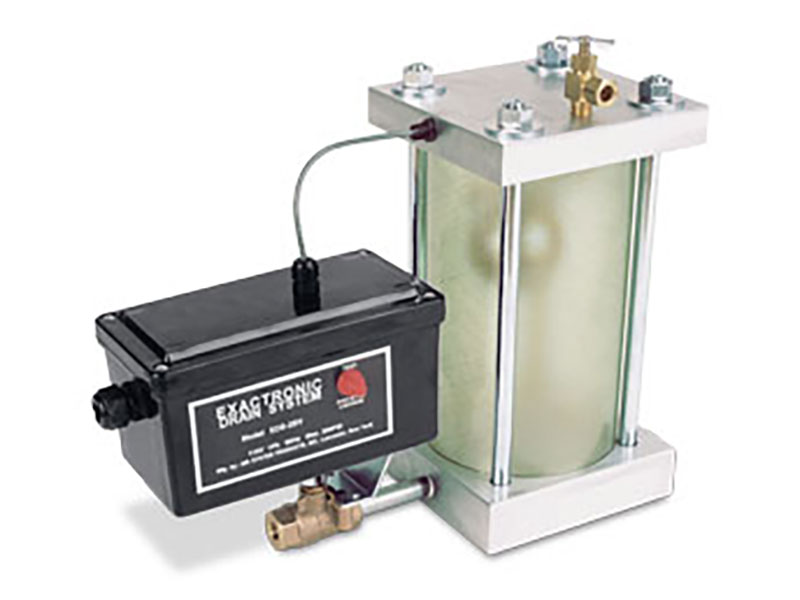

Exactronic Drain System

Electric Operated Condensate Drain System for Air Compressors

Combines the best of float type drains and timer operated ball valve drains to protect compressed air systems. Translucent reservoir for visual assurance of operation.

REQUEST A QUOTE

Features

Large 50 oz. capacity
No wasted air
Non clogging
Translucent reservoir
Isolated trigger mechanism
Full port ball valve

Benefits

Ideal for most compressor applications
Saves energy
No strainers to clean
Easy-to-see condensate level “Quick check”
Ensures both a positive opening and closing to prevent air loss
Handles scale and rust without clogging

How it Removes Condensate From Compressed Air Systems

Condensate enters the drain through one of two inlet connections. As condensate is collected and the translucent reservoir fills, a stainless steel level switch rises. When the condensate reaches a design level, the level switch sends a signal to the electric valve accuator which in turn opens a full-port drain.

Condensate will then exit the unit. As the level switch drops, a signal is sent to the valve actuator to close the ball valve. The drain is then returned to the collection mode.

Specifications

Inlet	1/2″ NPT
Outlet	1/4″ NPT
Pressure	0 to 200 PSI
Operating Temperature	35° to 140° F.
Weight	20 lbs.
Discharge	0.4 Gal. per cycle, 100 PSI
Voltage	120V/60Hz/1Ph.
Electrical Rating	NEMA 4X

Materials

Reservoir	Aluminum and Composite
Valve	Bronze w/S.S. Ball and Stem
Float	Stainless Steel
Seat	Stainless Steel
Seal	Viton^®

*Consult factory for Optional Remote Alarm Contacts and other options

Dimensions

Ordering Information

Stock No.	Description
EDS-2BV	Exactronic Drain System
