miniBOOSTER

Hydraulic Pressure Intensifiers


miniBOOSTERs are oscillating pressure intensifiers that can be mounted on low-pressure hydraulic systems. The miniBOOSTER will automatically intensify system pressure giving a higher outlet pressure. The miniBOOSTERs come in a vast range of models, each representing different functions for different environments.

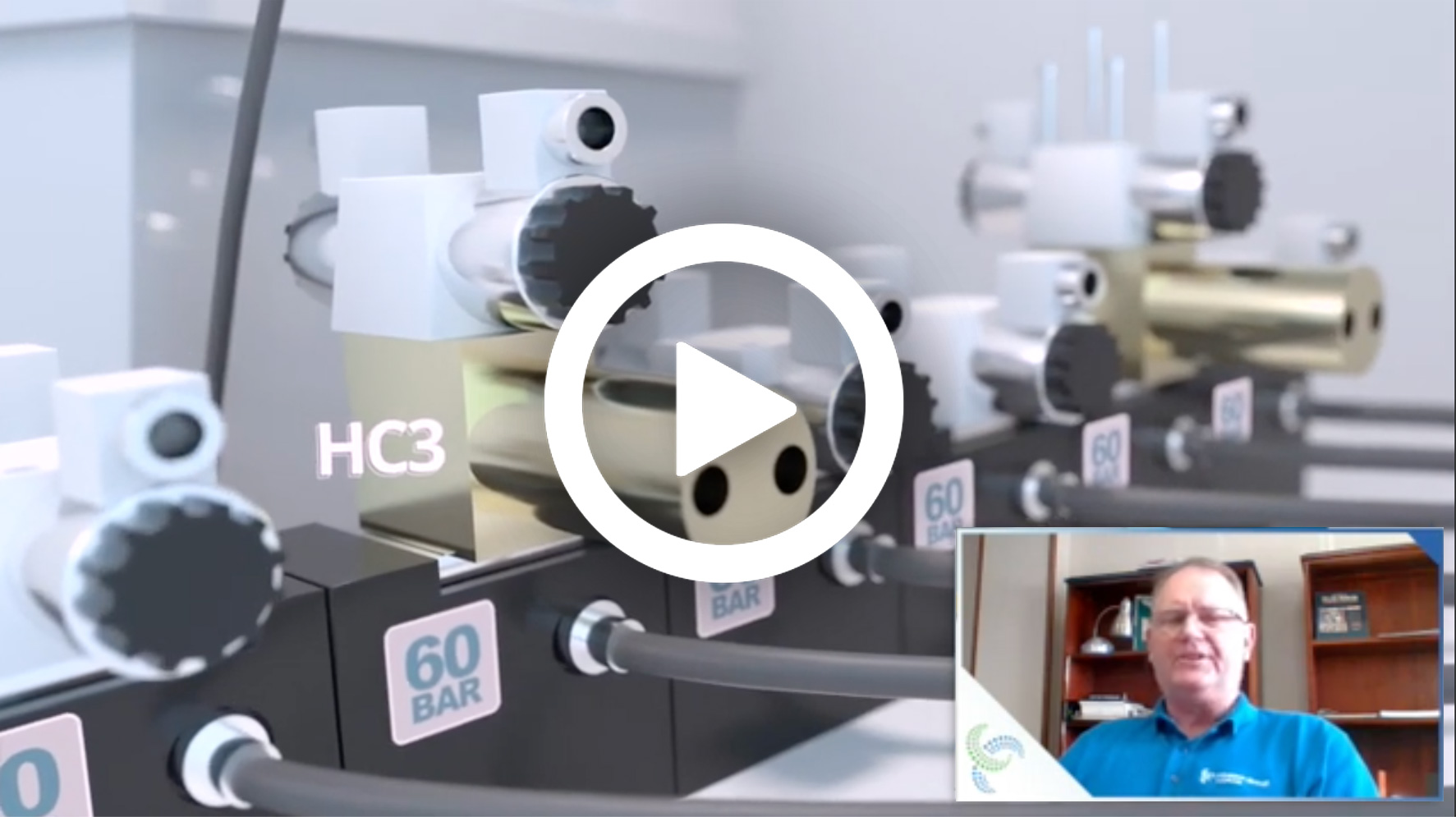

Webinar: miniBOOSTER

Wednesday, November 4 at 10AM EST

Join us for a technical webinar on miniBOOSTER pressure intensification capabilities. Learn how you can BOOST force in your application.

Application Videos

The only full range of hydraulic
intensifying solutions

Play
Play
Play
Play
Play
Play
Play
Play
previous arrow
next arrow
previous arrownext arrow
Slider

Minimum Size, Maximum Power

Whether your challenge is increasing force and torque performance or reducing footprint while hitting the right cost point, miniBOOSTER can help you boost productivity and get the job done right.

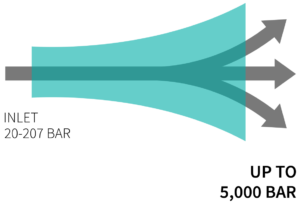

Our wide product range includes solutions for pressure up to 5,000 bar, flow up to 400 l/min and almost every fluid media.

Need a Boost?

Whether your challenge is increasing force and torque performance or reducing footprint while meeting the right cost point, miniBOOSTER helps you boost productivity and get the job done right.

miniBOOSTER intensifiers provide point-of-use higher than system pressure in a compact design that uses a portion of the hydraulic system capacity. The oscillating miniBOOSTER automatically intensifies system pressure giving a higher outlet pressure. Available in a vast range of models, each representing different functions for different environments.


Applications

Work Holding
Tap directly into the hydraulics of new or existing workholding systems and convert low to high hydraulic pressure to operate clamps and support cylinders.

Offshore
Tap directly into the hydraulics of the remote operated vehicles (ROV) and supply pressure needed for cutting, crimping and bolt tensioning tools.

Railroad
Tap directly into the hydraulics of the remote operated vehicles (ROV) and supply pressure needed for cutting, crimping and bolt tensioning tools.

Tire Removal
Boost hydraulics of onsite industrial equipment and supply pressure needed for torque wrenches, nut breakers and jacks for tire changes and maintenance.

Products and Specifications

View our wide product range of hydraulic intensifying solutions to fit your needs. For almost any fluid media, simply specify your needs for outlet pressure up to 72,500 PSIG and inlet flow up to 18 USGPM (70 l/min).

The table below provides an overview of the miniBOOSTER family of intensifiers.

Intensified Pressure (PSI)Intensified Flow Range (GPM)Inlet Pressure (PSI)Inlet Flow (GPM)Connection OptionsWeight (lbs)Available Ratios
Steel
Stainless  SteelModel
348 – 11,6000 – 0.1290 – 2,9000.5 – 2.1BSPP1.51.2 – 7.5HC1HC1WMiniBOOSTER-Image-HC1 Series Hydraulic Intensifiers
348 – 11,6000 – 0.7290 -2,9000.5 – 4.0UNF, BSPP2.21.2 – 20.0HC2HC2W
348 – 11,6000 – 2.9290 – 2,9000.5 – 4.0UNF, BSPP8.41.2 – 20.0HC2DHC2DW
290 – 11,6000 – 0.8290 – 2,9000.5 – 4.0BSPP9.11.0 – 10.1HC2D2HC2D2W
348 – 7,2500 – 0.7290 – 2,9000.5 – 4.0DO3/Flange5.51.2 – 20.0HC3HC3W MiniBOOSTER-Image-HC3 Series Hydraulic Intensifiers
377 – 11,6000 – 1.8290 – 2,9000.5 – 9.2BSPP8.1 1.3 – 9.8HC4HC4W
348 – 11,6000 – 0.7290 – 2,9000.5 – 4.0UNF, BSPP6.61.2 – 20.0 HC5N/A
348 – 11,6000 – 4.0290 – 2,9001.5 – 18.5BSPP20.91.3 – 8.2HC6N/A
348 – 11,6000 – 14.8290 – 2,9001.5 – 18.5BSPP44.01.2 –8.2HC6DHC6DW
290 – 11,6000 – 10.8290 – 2,9001.5 – 18.5BSPP48.41.0 – 10.1HC6D2HC6D2W
1,450 – 29,000 0 – 0.4290 -2,9000.5 – 3.7UNF, BSPP3.35.0 – 20.0HC7HC7W
1,450 – 29,000 0 – 0.4 290 – 2,9000.5 – 3.7UNF, BSPP11.05.0 – 20.0HC8N/A
3,190 – 72,5000 – 0.5 290 – 2,9001.5 – 5.3BSPP21.88.2 – 25.0HC9N/A MiniBOOSTER-Image-HC8 Series Hydraulic Intensifiers
290 – 20,0000 – 1.5290 – 2,9001.5 – 7.9BSPP 55.05.2 – 15.0HC9D2HC9D2W
